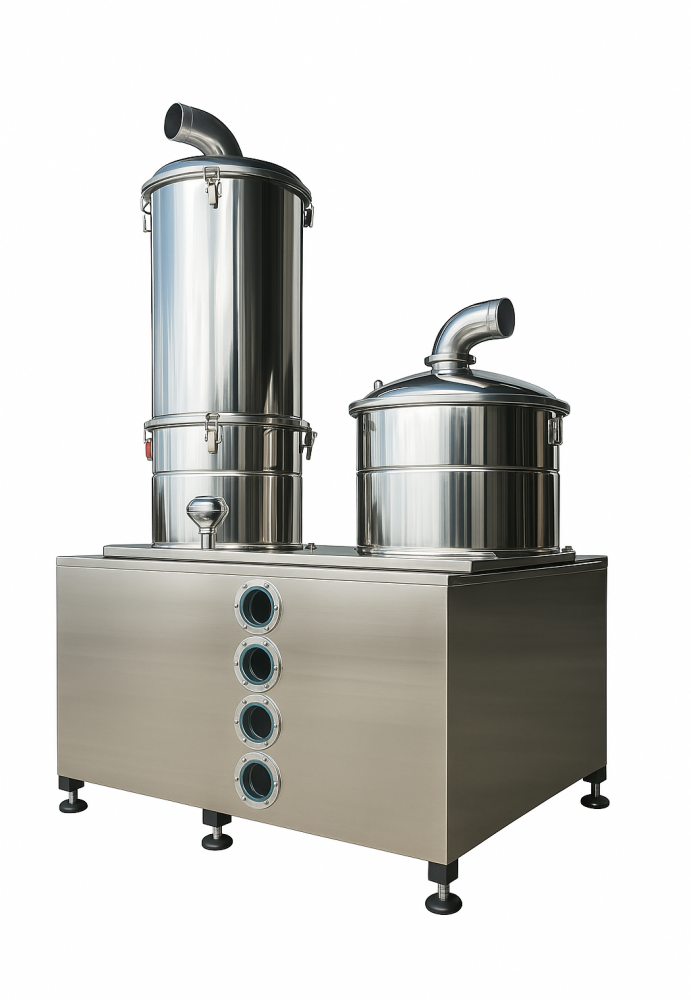

AWP-699 Industrial Vacuum for Air-Water Dual Filtration Unit
NO： AWP-699
Specifications： Industrial Vacuum for Air-Water Dual Filtration Unit

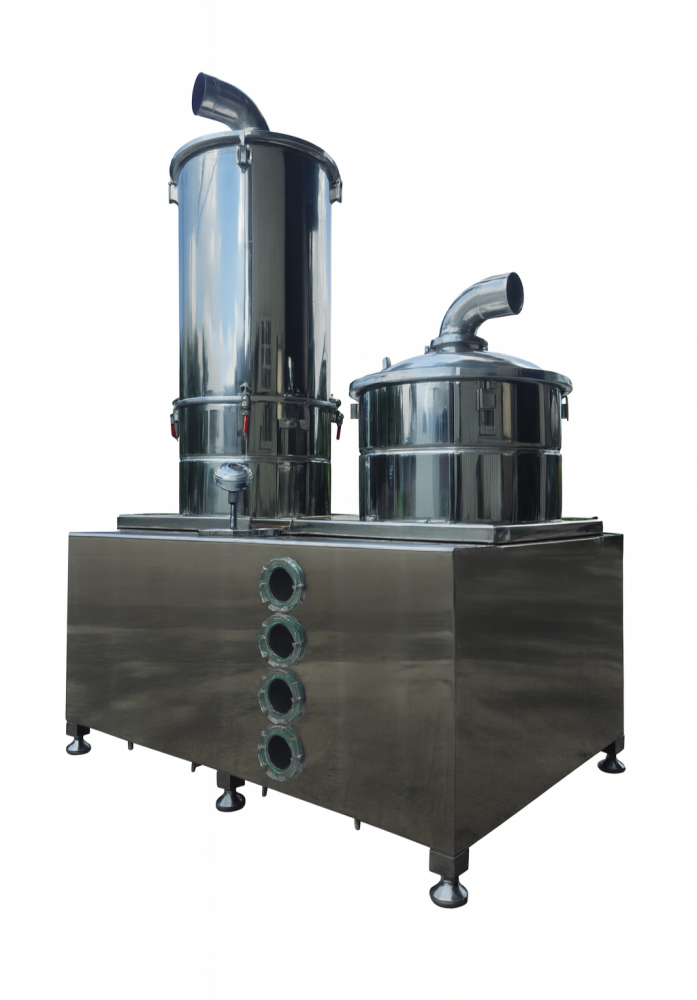

Description： YC-66 Industrial Vacuum for Liquids, Powders & Metal Chips — optimized for solid–liquid separation.

AWP-699 Industrial Vacuum for Air-Water Dual Filtration Unit

Model: AWP-699
Origin: 100% Made in Taiwan

Description

The YUCHA YC-66 is engineered for liquid–solid mixed contaminants commonly found around CNC machining centers. It simultaneously vacuums, filters, and discharges liquids, handling coolants, cutting oils, and metal chips (steel, aluminum, stainless) during daily maintenance and sump cleaning of CNC machining centers, lathes, mills, grinders, and EDM machines.
A high-efficiency powertrain delivers stable negative pressure. The system combines anti-liquid/anti-foam filtration with a float-level shutoff to prevent oil mist and foam ingress into the motor. With optional discharge kit and standalone pump (with level sensing), the YC-66 supports automated operation—vacuuming and pumping out liquids at the same time—to speed up liquid–solid separation and reclamation.
A large, detachable collection tank and visual level window make cleaning faster, extend coolant life, reduce maintenance frequency, and increase uptime.



Purpose-Built for Coolant & Swarf

Powered by a side-channel blower and Flow Inversion technology (reversible airflow) for rapid liquid discharge. Optimized to capture and filter large volumes of coolants/cutting oils mixed with metal chips, making it ideal for mid-to-large CNC installations. Designed for continuous duty with low maintenance, significantly cutting service costs and downtime. Optional 200 L detachable tank shortens cleanout time.

Key Features

  • 304 polished stainless-steel housing — corrosion resistant, chemical resistant, easy to sanitize.

  • Dedicated for coolant/oil + metal chips — ideal sump cleaner for CNC centers, lathes, mills, and grinders; stabilizes machine performance and throughput.

  • Side-channel blower + Flow Inversion — high vacuum with fast pump-out, shortening downtime.

  • 24-hour continuous operation — industrial-grade reliability with long service intervals.

  • 200 L (optional) detachable liquid tank + level window — high-capacity, quick cleanout, clear visual check.

  • Two-stage protection

    • Stage 1: 20 μm anti-liquid/anti-foam filter

    • Stage 2 (optional): PTFE filter (~7 m²) to suppress oil-mist carryover and protect the power unit

    • Water-absorbing barrier layer prevents moisture/oil vapor entry to the blower

  • Customizable filtration range: 0.1–300 μm

    • Example sets: 300/100 μm (pre-filter), 90/10 μm (micro-filter) — extend coolant and oil life

  • Anti-liquid/anti-foam + float full-level auto stop — prevents liquid ingress and overflow risks.

  • Pressure gauge for filter-clog monitoring — supports preventive maintenance and keeps suction stable.

  • Optional discharge pump with float level sensor — automated/semi-automated drain for multi-machine, long-shift cleaning.

  • Lower consumable cost & longer fluid life — efficient liquid–solid separation reduces coolant disposal and changeover frequency.

  • Broad process coverage — turning-milling, grinding, wire-cutting, die-casting, EDM, and general metalworking.

  • Three-in-one — oil–water recovery × liquid–solid separation × machine sump cleaning.

Simultaneous Suction & Discharge

  • Simultaneous liquid suction, filtration, and discharge to minimize downtime.

  • Vacuum and pump-out at the same time for continuous operation and faster liquid–solid separation.

  • Flow Inversion enables rapid coolant decanting/pump-out without disassembly.

Typical Applications

Widely used for metalworking fluids and mixed swarf, including aluminum/magnesium alloys, machining waste fluids, graphite, carbon powder, plastics, wood dust, chemicals, pharmaceuticals, food processing, electronics, PCB, biotech/medical, and cleanroom or central collection setups. Custom filters available for toxic/non-toxic media.

Options & Customization

  • Explosion-proof versions, powder feeders, and exhaust-gas treatment solutions

  • Custom motor power, airflow, static pressure, inlet size, and materials (e.g., SS304/SS316)

  • 200 L detachable tank, discharge kits, and standalone discharge pump with level sensor
